Active Coating Titanium Anode for Electrolysis

Basic Info.

Model NO.	anode-001
Specification	customized
Trademark	ELEGANT
Origin	China
Production Capacity	500000 Sheets/Year

Product Description

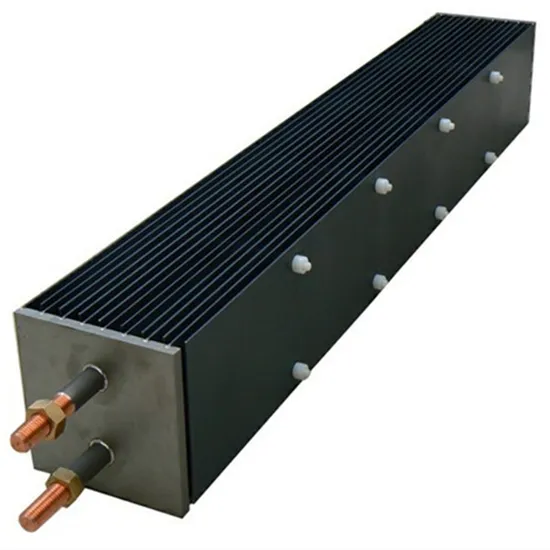

Active coating titanium anodes (DSA)

As the leading professional titanium electrodes manufacturer, Elegant titanium group has been adopting the advanced coated technology to ensure our electrodes with higher cost performance. Elegant titanium group could make different sizes and shapes according to designed drawing by clients, so as to obtain the best effects.
Titanium anode coating, which consists of mixed metal oxide (MMO), such as Ruo2 (Ruthenium)--the Ruo2 coating thickness ≥ 10um, Iro2 (Iridium)--the Iro2 coating thickness ≥ 10um, Tio2,Ta2o5 (Tantalum), Pt (Platinium)--0.5-5 micron, Pbo2--the Pbo2 coating thickness 0.6-1mm, can distinctly reduce cell voltage during the electrolysis of chlorine evolution, oxygen evolution and have remarkable energy-saving effect and longer lifetime. The substrate is GR1 or GR2 titanium material, which can be reused and re-costed. Titanium anode is also called as DSA or insoluble titanium anode due to its dimension stability and high corrosion resistivity. With such advantages, titanium anode won't pollute electrolysis system and increase final products purity, reduce the maintenance cost of the equipment.
DSA titanium anode application fields:
Copper recovery in etching liquid, electrodialysis industry, MMO cathodic protection, sewage treatment, swimming pool disinfection, electrolysis, sodium hypochlorite generator, chlor-alkali industry, water heater anticorrosion, lonized water electrolysis, electroplating, hydrometallurgy

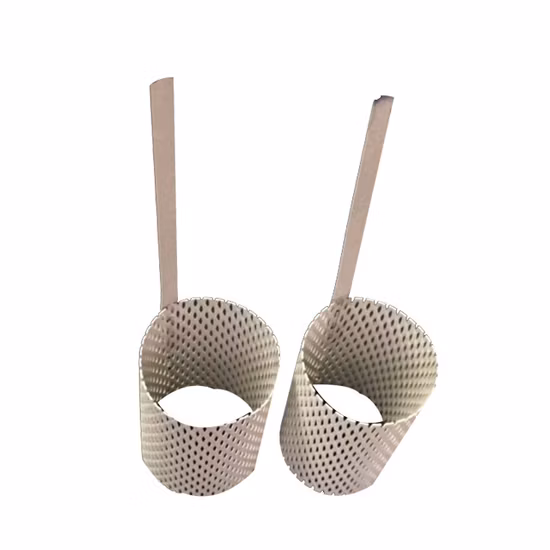

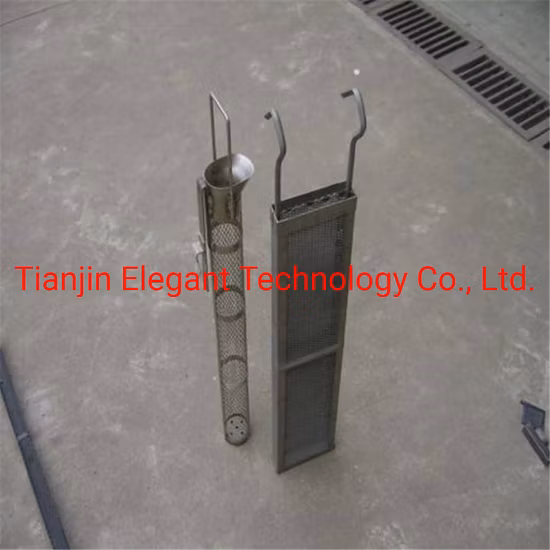

DSA titanium anode available shapes: sheet, wire, mesh,tube, ring, strip, mesh basket, etc.
